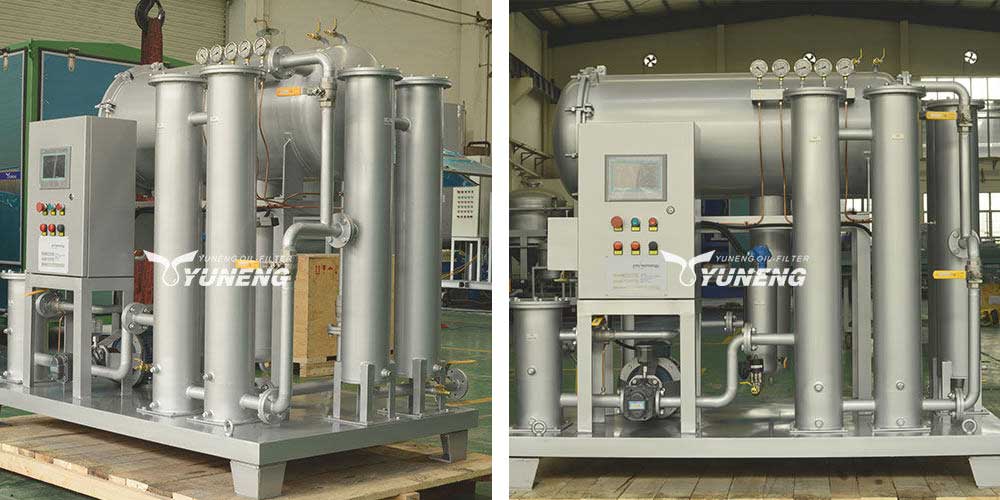

Coalescing Dehydration and Oil Filtration Machine
- JT Online Coalescence Dehydration Oil Filtration Machine dehydrates through 2 kinds of filter elements. The coalescing filter turns free and dissolved water from small molecules into large droplets, and the separation filter removes the water droplets by gravity, falling into the tank. It removes particles with a filter and cleanliness up to NAS class 6.
- It is suitable for light oil, turbine oil and lubricating oil systems, especially good for water- leakage systems.
The Coalescing Dehydration and Oil Filtration Machine are widely used in oil filtration of various hydraulic, lubrication, and turbine systems, and its main function is demulsification and filtration. The equipment integrates advanced coalescing and separation filter elements, fine filtration, and high-efficiency demulsification. Multi-stage filtration can remove all kinds of fine impurities and ensure that the additives in the oil will not deteriorate.
Parameter of Coalescence Dehydration Oil Filtration Machine
|Technical Parameter||Flow Rate||L/MIN||50||100||150||200|
|Power Supply||(380V~50Hz) 3Phase 4Wires, or as per buyer’s option|
|Total electric power||KW||1.5||3|
|Pipe diameter of oil Inlet/Outlet||DN||25/25||40/40||50/50||50/50|
|Oil Treatment Index||Water Content||ppm||≤150|
The machine size, the weight will change slightly due to different configurations.
Principle of Product
1. The sullied oil first passes the filter, the solid impurities are rid of, and the filtered oil gets transported to the next part of the filter, which is the oil pump.
2. Then, the smaller impurities which are hard to remove can get rid of in the fine filter.
3. It continues to pass the coalescing separator, and at this part, the molecular separation technology performs variable pressure on the oil, eliminate the intermolecular binding force, dissolves water and, frees water in the oil fast, breaks the oil film, get rid of the oil molecules and precipitates. At this point, the whole process is completed, and you will get the desired pure oil.
The oil liquid reaches an index as follows according to this lube oil filtration device:
Pollution degree: Class 6 in NAS1638
Existing moisture: Lower than 100ppm
Oil color: Clear lucite
Working life: More than 20 years
Machine noise: Below 85dB (A)
The machine shell and pipe system are made of the low content alloy high quality cast steel, the pump takes the corrosive proof, and rust prevention cast steel, and the frame adopts the cast steel.
Application of Coalescing Dehydration & Oil Filtration Machine
- Suits almost all kinds of oil
The Series Coalescing Dehydraulic oil filter machine is used to recover and purify various kinds of high-level precision lubricating oils such as mechanical oil, hydraulic oil, polyester oil, transmission oil, coolant oil, gear oil, refrigerant oil, heat treatment oil, compressor oil, and so on.
- Remove impurities in the oil.
The machine is combined with a high precision coalescing dehydration system. Therefore the machine has a powerful strength to rid the impurities, dewater the oil and surely filter the solid particles thoroughly.
- Remove gas in oil
It adopts stereo-evaporation technology, so the machine also has the function to separate the water and gas fast and thoroughly.
The Coalescing Dehydration and Oil Filtration Machine can fast and efficiently degas, dewater, and remove the impurities and volatile matter. It thoroughly enhances the oil quality, restores the lubricating oil viscosity, augments the flashpoint, and improves operational performance.
