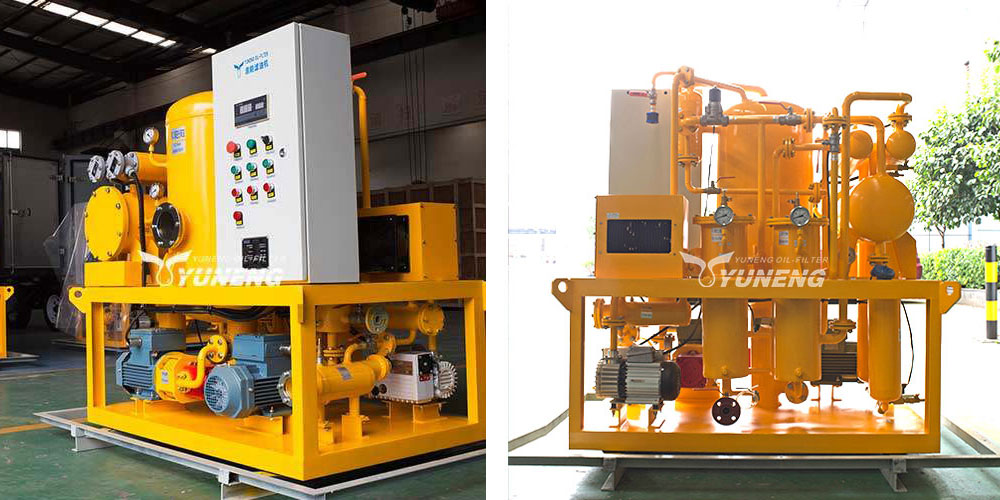

DYJC Online Turbine Oil Purifier
DYJC Online turbine oil purification equipment is specially designed for water, steam turbine, and Other lubricating oil units.
Specially designed for the customer’s oil products with high content of water and serious emulsification, and is adept in deep dehydration to achieve better oil quality than standard. The design of this machine is very user-friendly. It can be used for deep dewatering with a vacuum system alone or online filtration with only coalescing dewatering system. It can also use vacuum separation and coalescing dewatering separation at the same time.
It is suitable for dehydration of oil with water content below 2%. Treatment, reliable system operation, and stable performance, the use of this product is an ideal solution for oil treatment of leaking units.
Introduction of Turbine Oil Purifier
- DYJC Series Effectively Remove Water Coalescing Vacuum Turbine Oil Purifier is one kind of supportive online oil cleaning device that is equipped for hydro-turbines, turbines and other lubrication sets.
- It is mainly designed to purify the waste oil with large water content and is seriously emulsified. Customers can get good quality oil by deep dehydration filtration. The design is very human-centered, customers can only use the vacuum system for deep dehydration or only use coalescing dehydration system for online filtering, or can use both systems at the same time.
- It runs reliably and stably, which is undoubtedly the ideal oil treatment solution.
The turbine oil purifier adopts the latest technology, which integrates gravity, sedimentation, reunion, vacuum separation, adsorption, separation, and pressure filtration into one. With super strong demulsification, dehydration, deaeration, and impurity removal capabilities, it is great equipment for processing wheel oil, low viscosity lubricating oil, and hydraulic oil.
This turbine oil filtration machine is widely used in power, metallurgy, and other industries to purify turbine oil of steam turbines, water turbines, fuel engines, and steam turbine units. The machine is adept in demulsification, dehydration, and purification of heavily emulsified turbine oils and water-incorporated low-viscosity lubricating oils. It can also be used for other mechanical equipment. The product can absorb free carbon and colloidal substances through macromolecules to restore new oil properties.
Coalescing turbine oil purification machine consists of the following components: coarse filter, oil inlet pump, heater, protection filter, coalescing separating chamber, dissolved air chamber, vacuum separation chamber, vacuum pump, condenser, oil outlet pump, fine filter, tube, valves, and electric control systems.

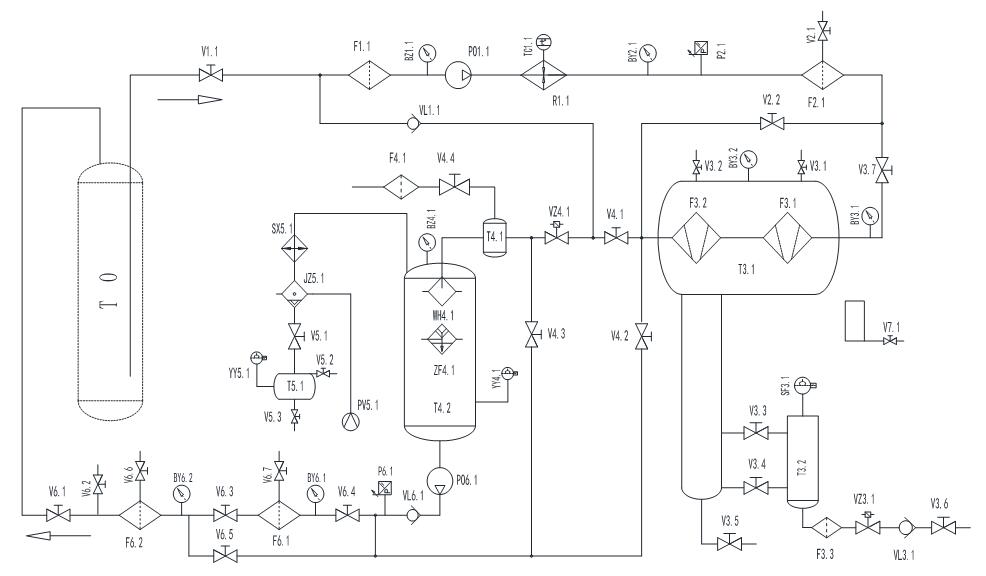

Turbine Oil Purifier Working Flow Chart
Parameter of Turbine Oil Purification Machine
|DYJC Series Online Turbine Oil Purification System|
|Technical Parameter||Flow rate||L/H||3000||6000||7800||9000||12000||18000|
|Power supply||50Hz 380V 3-Phase 4-Wire|
|Inlet/outlet diameter||mm||25 / 25||40 / 40||40 / 40||50 / 50||50 / 50||50 / 50|
|Oil Treatment Index||Water content||ppm||≤50|
* The machine size, the weight will change slightly due to different configurations.
- First-class technology and design, with a DYJC turbine online and offline working, excellent degree of automation, jumbo size, flexible and mobile structure.
- Coalescence filters with oil-water separation technology to perfectly ‘evolve’ the combination of dehydration.
- Temperature range of 20-100
- Bring 5000 ppm of free, emulsified, and dissolved water down to 50 PPM. Achieving filtering rate 1 micron or high
- Self-contained, skid-mounted, stationary system or as a mobile system
- Ideal Turbine Oil Purifier for lube oil in a combustion turbine, steam turbine, hydro turbine, etc.
- Various advanced systems are applied in this mobile machine, for instance, automatic overload protection system, automatic pressure alarm shutdown system, automatic constant temperature system, automatic protection, etc., which are all for failure-against. These systems ensure the safe operation of the machine.
During the work of different kinds of steam and water turbines, the oil is easily polluted. The content of moisture and impurities in the oil tends to increase. Oil emulsification seriously affects the operation safety and service life of the machine. According to the properties of turbine oil with high water content, easy emulsification, and high impurity content, this product can quickly and effectively remove water, gas, and impurities. Restore the oil to the brand-new oil quality and ensure the safe operation of the machine.
According to the properties of turbine oil with high water content, easy emulsification, and high impurity content, this product can quickly and effectively remove water, gas, and impurities. Restore the oil to the brand-new oil quality and ensure the safe operation of the machine.
