QTHS SF6 Gas Refilling and Treatment Device

  • Yuneng is a manufacturer of sf6 gas refilling device. This sf6 gas filling equipment uses advanced refiling technology for a wide range of gas treatment, gas purification and gas filling.
  • SF6 gas is a good electrical insulator. SF6 gas can not only provide insulation, but also ensure the stable operation of the equipment under the normal pressure level that cannot be provided under vacuum. On the other hand, the SF6 gas can cause a greenhouse effect. If these gases are put into the atmosphere, it will cause great harm to the environment. Therefore, this gas must be handled properly.
  • This series of SF6 gas processing equipment uses high-pressure liquefaction and air-cooling technology to store gas in the form of liquefied gas, which is safe and not easy to leak. The recovered SF6 gas dust content is less than 1 micron. The power of the equipment can be adjusted according to your needs.

   Description


Application of SF6 Gas Refilling Device

SF6 Gas Handling and Refilling Machine widely used in SF6 gas insulated electrical equipment factory, use, operation, scientific research departments and so on, to create a vacuum for a variety of electrical equipment, and fill electric equipment with SF6 gas, and recover SF6 gas from the use of test equipment, then fill to storage tank after purifying and compressing. The recovery device is suitable for SF6 electrical appliances and GIS combined electrical apparatus. The gas recovery unit of  SF6 is based on the standard of DL/T662-2009 “SF6 gas filling and recovery device”, which consists of a recovery system, an inflating system, a vacuum system, a purification system and gas storage system.

Features of SF6 Gas Refilling Device

  1. Vacuum and check vacuum pressure for retrieving device itself including its storing vessel and pipes;
  2. Vacuum and check vacuum pressure for the insulation equipment;
  3. Retrieve and store SF6 gas and check the remaining vacuum pressure of the insulation equipment;
  4. Get rid of water content and other particulates in the SF6gas with filtration and purification process;
  5. Refill up the SF6 gas into the insulating equipment to specified operating pressure.

Working Flow Chart of SF6 Gas Filling Equipment

Advantages of SF6 Gas Refilling Device

  1. Advanced design, full function and compact structure with the simple operation;
  2. Compressed systems: it takes a closed compressor to ensure no leakage;
  3. Vacuum systems: it takes the rotary vane vacuum pump to prevent oil returning;
  4. Purification systems: Equipped with Ingersoll Rand filters which take electric heating and high efficient adsorbents. Without frequent replacement of the adsorbents, so the purification result is better;
  5. Electric systems: Equipped with automatically confirmation three-phase power devices, failure protection;
  6. Control systems: the valves take the latest technology;
  7. Storage system: Provide the storage tank according to users’ requirements;
  8. This equipment is a mobile type.

Parameter of SF6 Gas Filling Equipment

ItemName of ParameterUnitQTHS-1-2QTHS-1-10QTHS-1-15QTHS-1-30
QTHS-1-60
Technical parameter of the equipmentCapacitym³/h210153060
Recovery pressureMPa≤0.05
1m³ gas recovery time (initial pressure 0.6MPa)h/m³≤3≤0.6≤0.4≤0.2≤0.1
Final pressureMPa0~0.8 Adjustable
1m³ gas injection time(initial pressure 133Pa to 0.6MPa)h/m³≤3≤0.6≤0.4≤0.2≤0.1
The time required for 1m³ volume vacuity from 0.1MPa to 133Pah≤1≤0.6≤0.4≤0.4≤0.4
Ultimate vacuumPa≤10
Gasification way Electric Heating
Liquefaction way High-pressure condensation liquefaction
Dry filter regeneration mode Vacuum activation regeneration
External dimensions(including storage tank rack)mm1000*800*15001600*1200*18001800*1200*18001800*1200*18002300*15800*2000
Working powerV(380V-50Hz) 3Phase 4 Wires, or as per buyer’s option
Total electrical powerKW58121822
IndexSF6 Gas purity after recoveryPPM60
Oil contentPPM5
Impuritiesμm1

*The machine size, weight and oil treatment index will change slightly due to different configurations.

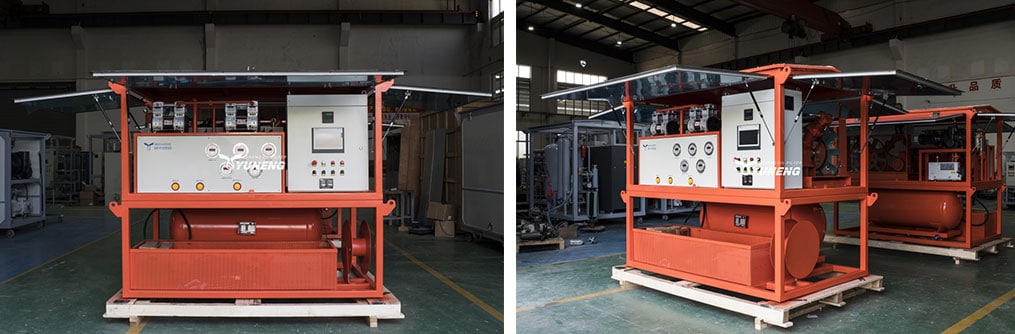

Product Images

So far Yuneng has sold over 15,000 sets of Yuneng brand oil purifiers, which are widely used in power electric, metallurgical, petrochemical, mechanical, military industry, railway, light industry, and other industries. In addition to SF6 gas refilling device, we also provide Lube Oil Purifier. If you have any needs or questions about Yuneng’s oil purifier, please contact us.
