ZJB Single Stage Vacuum Transformer Oil Filtration Plant

  • The ever-increasing voltages and ratings of modern transformers and electrical equipment have led to greater electrical stress in insulating materials and fluids. To cope with these greater pressures, transformer oils with higher dielectric quality are required, and the residual moisture in the insulator must be kept low.

  • In order to process and purify the insulating oil, a transformer oil filtration machine is required for filtration. Insulating oil filtration is the process of removing particles and moisture from transformer oil.

  • As a professional transformer oil filtration plant manufacturer, Yuneng has professional oil filtration technology. The transformer oil filtration plant can effectively remove the free water, dust and other solid particles in the transformer oil, and improve the cleanliness of the insulating oil. While removing impurities, the original properties of the pressure-swing oil are retained, and other additives and functions in the oil are not damaged.

   Description


Application of Transformer Oil Filtration Plant

  • For small transformers, ZJB single-stage vacuum transformer oil filtration plant is specially designed to remove pollutants, such as particles, water, gas, etc.
  • Dissolved gases in transformer oil can cause arcing, corona discharge, and overheating, reducing the electrical efficiency and life of the transformer. Similarly, water pollution down to 30 ppm (parts per million) can adversely affect the insulation strength of oil. With the continuous improvement of energy efficiency standards for distribution transformers, the need for effective degassing will become increasingly important in the future. Particle contamination can also affect the function of the insulating oil.

Therefore, the Yuneng single-stage transformer oil filtration system is the best solution to clean the used transformer oil.

Working Principle of Transformer Oil Filtration Plant

  • To purify oil under the action of negative pressure from the oil inlet valve into the primary filter to filter out the larger particles of impurities, heating the oil by the heater to the set temperature(controlled by the automatic constant temperature digital display temperature controller).

  • The heated oil into the vacuum chamber and be atomized by the atomized spray, step by step in the efficient separation tower from the developed area a great deal of oil film.

  • Under the vacuum rapid evaporation to realize the separation of oil, water in and gas.

  • The isolated oil by special oil transfer pump pumping out and go to the fine filter to remove the mechanical particles for completing a purification cycle.

  • Depending on the crude oil condition, one to three times oil purification circulation can achieve the requirement.

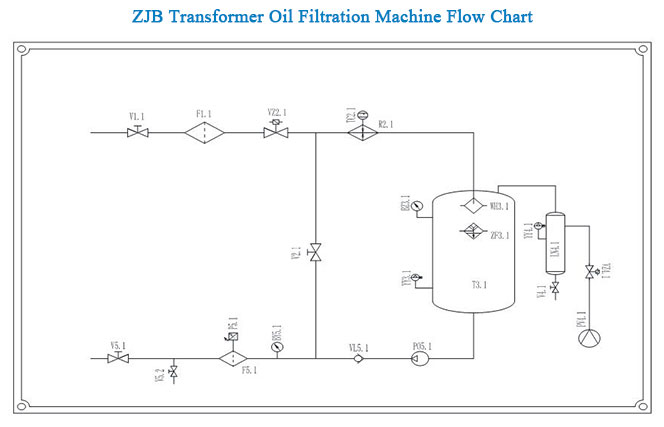

Working Flow of the Vacuum Transformer Oil Filtration Plant

To be treated oil storage equipment Oil inlet Oil inlet valve Primary filter Solenoid valve Heater Vacuum separation chamber (two ways):

  • Vapor → Condenser  Vacuum pump PV4.1 Air
  • Clean Oil 1st stage Atomizer 1st stage separation tower Oil outlet pump Fine filter Oil outlet valve Oil outlet To be treated oil storage equipment

Parameter of Transformer Oil Filtration Plant

ZJB Series Transformer Oil Filtration Plant
ItemName of  ParameterUnitZJB0.42KYZJB0.9KYZJB1.8KYZJB3KYZJB6KYZJB9KY
Technical parameter of the equipmentFlow rateL/min7153050100150
Limit vacuityPa≤90
Working vacuityPa≤666
Working pressureMpa≤0.5
Temperature range45-65
Power supply As per buyer’s option
Total electric powerkw4.110.513.5346797
Inlet/outlet diametermm15 / 1515 / 1520 / 2025 / 2532/3250/ 50
SizeLengthcm65110130150175215
Widthcm50850110120120160
Heightcm901400150180235260
Weightkg1202003105606801200
Oil treatment indexBreakdown voltagekV≥55 (Spherical Electrodes)
Water contentppm≤10
Gas content%≤1
Filtration accuracyµm≤1~3

*The machine size and weight will change slightly due to different configurations.

Advantages of Transformer Oil Filtration Plant

  1. Small and compact structure

  2. With competitive price but high running performance

  3. Improve oil quality and extend the transformer life span

  4. Simple operation and reduce machine maintenance cost

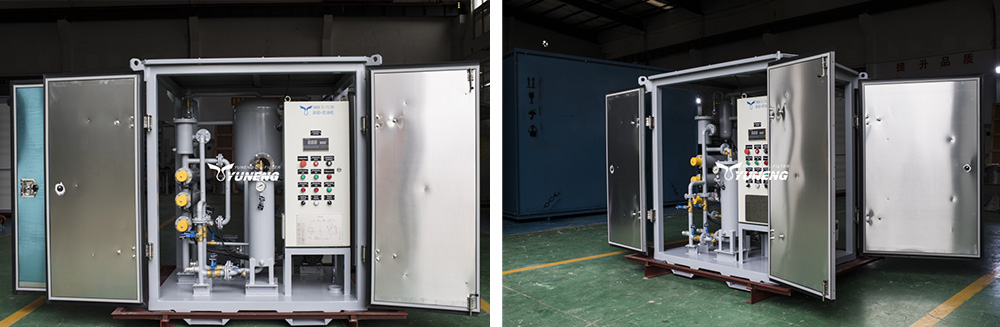

Product Images

Over the past two decades, Yuneng Oil Purifier has always stuck to the operational concept of “being faithful and dedicated, practical in development, and cooperative for common progress”. If you have any questions or needs about our transformer oil filtration machines, please feel free to contact us.
