10000LPH Full Auto Transformer Oil Degassing Equipment To Remove Impurities
China oil purifier 10000LPH Full Auto Transformer Oil Degassing Equipment has a very wide range of applications, and at the same time, it is suitable for models with large size transformers.
The primary purpose of this degassing equipment is to remove moisture, dissolved gases and mechanical impurities in transformer oil, helping transformer oil to improve dielectric strength and breakdown voltage. Its normal flow is at a working pressure less than 0.5MPa, and the average normal operation time is more than 5000 hours.
Features of Transformer Oil Degassing Equipment
- Unique degassing and removal moisture vacuum technology
- The most efficient oil processing in its class
- Automated operation of online and offline transformers
- Suitable for all types of transformer oils
Advantages of Transformer Oil Degassing Equipment
- Improve the insulating properties of transformer oil
- Improve the insulation quality of the transformer
- Improve transformer reliability and minimize electrical discharge risk
- Reduce uninterrupted power supply failure and breakdowns of transformers
FAQS
Q: Can you provide relevant supporting documents?
A: Of course, we can provide quotations, outline drawings, manufacturing plans, quality control plans, test plans, etc.
Q: When do you deliver?
A: How long to deliver depends on the type of transformer.
Q: How long is your standard warranty period?
A: The product quality is guaranteed for one year. We provide Lifelong maintenance and spare parts supply.
Q: Will you provide relevant operation training for the machine?
A: Yes, we provide free machine installation and operation training.
Q: Do you have experience with this transformer?
A: Of course, we can provide a reference list for inspection.
Parameters of Transformer Oil Degassing Equipment
Model: ZJA10BY | Nominal flow: 10,000L/h |
Capacity: 167L/Min | Working pressure: ≤0.5MPa |
Limit vacuum: ≤5Pa | Working vacuum: ≤80Pa |
Operating oil temperature: 45~65℃(Adjustable) | Power:According to customer’s requirement |
Heating power: 120Kw | Total power: 132kw |
Working noise: ≤80dB(A) | Weight for reference: 2200Kg |
Inlet/outlet diameter: 50/50mm | Size for reference: 2500×1900×2500mm |
Average normal running time: ≥5000 hours | Continuous working hours: ≥200 hours |
*The machine size, the weight will change slightly due to different configurations.
Application of Transformer Oil Degassing Equipment
Why we need to use Full Auto Transformer Oil Degassing Equipment
In order to control the micro-water and gas content of the transformer oil and avoid affecting the electrical, physical, and chemical properties of the transformer oil, we need to implement the transformer oil dehydration and degassing process. In the process of degasification of transformer oil, we can use a transformer oil degassing machine to achieve.
Full auto transformer oil degassing equipment helps to remove moisture, dissolved gases and mechanical impurities from transformer oil. This process can help transformer oil improve its dielectric strength and breakdown voltage.
Using China Oil Purifier transformer oil degassing equipment will prolong the life of the transformer and its components, maintain the dielectric strength of the transformer oil, and reduce the chance of transformer failure and discharge.

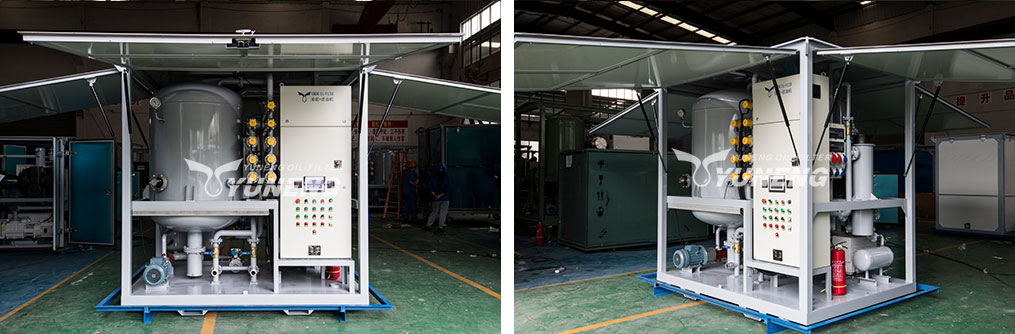

Detailed Images
If you need a transformer oil degassing machine, please get in touch with our company to get the most professional service. We are always available to provide you with professional consulting services.
