Used Lubricating Oil Recycling Machine

Yuneng’s used lubricating oil recycling machine can process a variety of waste lubricants, and obtain high-quality base oils and a small amount of gasoline and diesel by vacuum distillation. After pretreatment, the waste oil is pumped into the distillation kettle and heated to the working temperature to obtain base oil, gasoline and diesel. After the reaction is completed, the heating is stopped, the residue is removed from the bottom of the tank, and it can be used again. Production is economical, but base oils are very good. This is the world’s most advanced technology in the field of waste oil recovery and is suitable for large-scale industrial production.


Technical Parameter of Used Oil Recycling Machine Product Introduction

  1. Patent Oil Filtration Technology

Using our patented oil filtering technology of minute extension and large filtering area, this not only can wipe out all impurities, including colloid, asphalting, suspended matters and all

kinds of chemical compounds, but also can restore the waste oil to its original color.

  1. Vacuum Degas & Dewater

Vacuum degassing and dehydration technology which can remove the harmful gas and free water in the waste oil to make sure it can be reused.

  1. Waste Gas Treatment

The advanced waste gas treatment technology is environmental friendly, which will prevent our surroundings from being polluted.

  1. Electrical Control System

The electric control system adopts a concatenate control setting, which is simple, safe and reliable.

  1. Automatic Feeding System

The automatic feeding system can decrease labor intensity.

  1. Small Space Cover Design

The equipment is all new designed, which occupies a small area.

  1. Low Cost

Excellent and visual treating effect and low treatment cost.


YNZSY Series Used Oil Recycling Machine
Parameter NameUnitYNZSY250-1YNZSY500-1YNZSY1000-1YNZSY2000-1
Treating capacityL/h62.5125360500
Loading capacityL25050010002000
Recovery rate%75~90
Working pressureMPa≤0.4
VacuityMPa-0.06 ~ -0.095
Heater temperature range≤180
Working noisedB(A)≤80
Working power (380V-50Hz) 3Phase 4 Wires, or as per buyer’s option
Total electric powerKW506090110

*The machine size, the weight will change slightly due to different configurations.

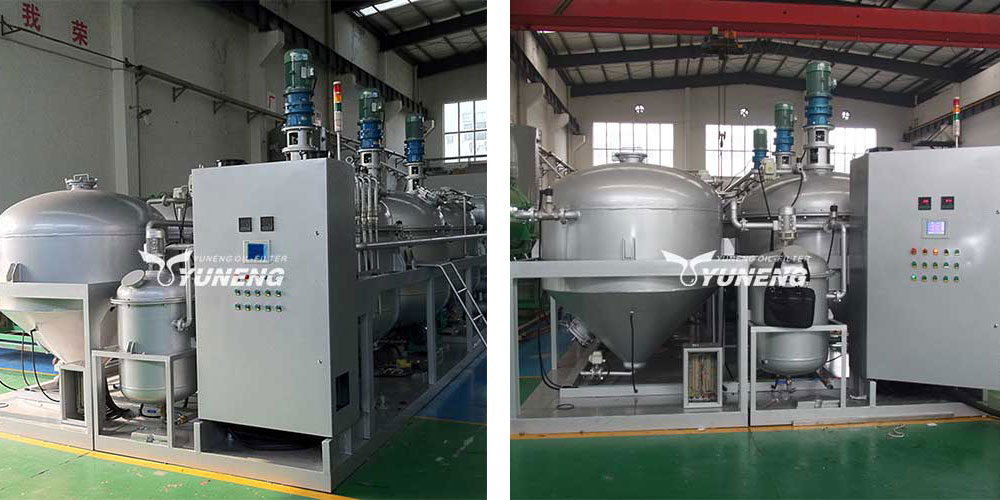

Product Images

So far we have sold over 15,000 sets of Yuneng brand oil purifiers, which are widely used in power electric, metallurgical, petrochemical, mechanical, military industry, railway, light industry, and other industries. If you have any questions or needs for our oil recycling machine please feel free to contact us.
